Heavy Duty Fixed Base Powered Stacker - 1000 lb Capacity with 3 x 25 Inch Forks | Warehouse Equipment for Pallet Lifting & Material Handling
Free shipping on all orders over $50
7-15 days international
7 people viewing this product right now!
30-day free returns
Secure checkout
99768406
Description

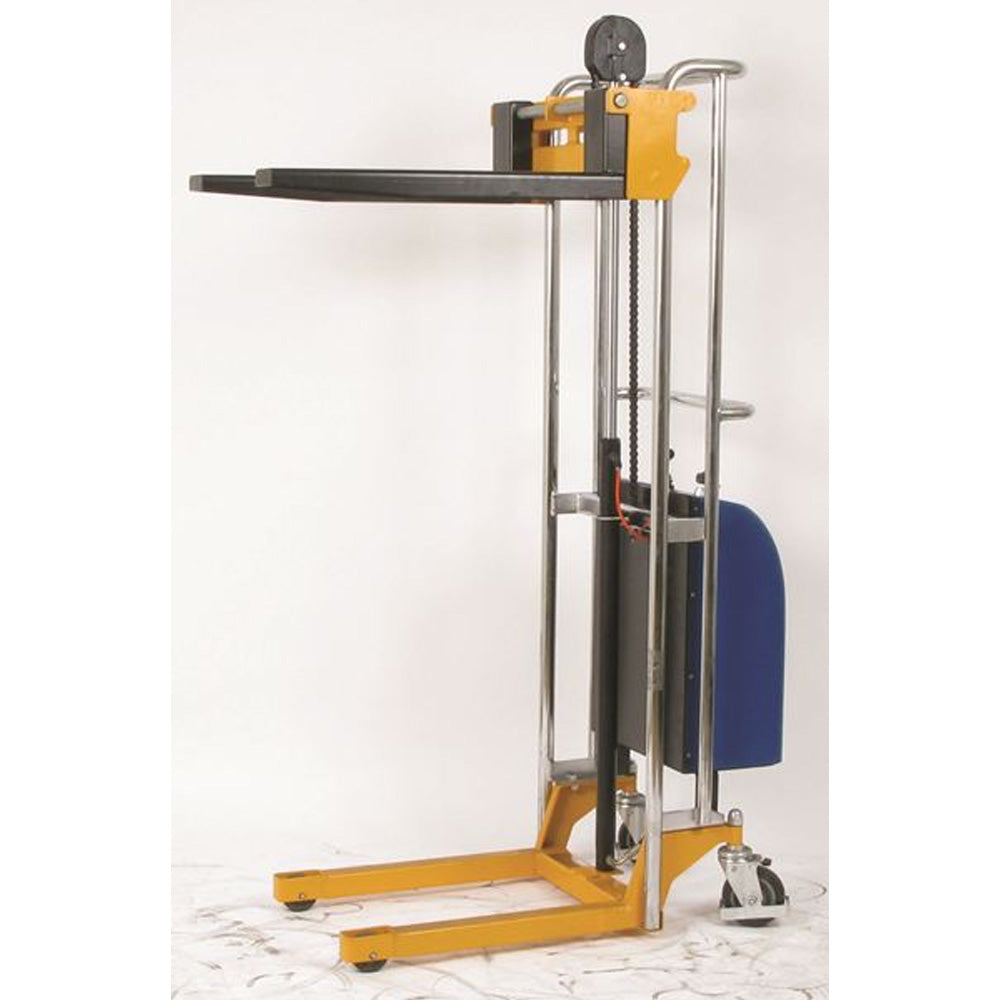

Fixed Base Powered Stacker with 3" x 25" Forks, 1000 lb Capacity
The Fixed Base Powered Stacker is designed for efficient material handling with a 1000 lb capacity. Featuring a Wesco-manufactured hydraulic cylinder known for proven quality, this stacker includes a battery and charger. The forks lower to the floor on all models for easy loading and unloading, and the stacker meets ANSI B56.10 specifications.
This stacker is equipped with 5" phenolic front wheels and 4" phenolic rear swivel casters, ensuring smooth movement and stability. The stacker is available with an optional 110V AC power model upon request and offers a Power Drive option for enhanced performance.
All models come with a 1-year warranty, ensuring reliability and durability in material handling operations.
Specifications
| Specification | Part Number: 261028 | Part Number: 261029 | Part Number: 261030 |
|---|---|---|---|
| Model | PESFL-56-25 | PESFL-64-25 | PESFL-76-25 |
| Type | Fork Models | Fork Models | Fork Models |
| Front Wheel | (2) 5" Phenolic | (2) 5" Phenolic | (2) 5" Phenolic |
| Rear Swivel Caster | (2) 4" Phenolic | (2) 4" Phenolic | (2) 4" Phenolic |
| Lift Height | 56" | 64" | 76" |
| Capacity | 1000 lb | 1000 lb | 1000 lb |
| Width Forks | 3" | 3" | 3" |
| Length Forks | 25" | 25" | 25" |
| Load Center | 15" | 15" | 15" |
| Base Leg (ID/OD) | 15"/21" | 15"/21" | 15"/21" |
| Overall Width | 25.5" | 25.5" | 25.5" |
| Overall Height | 72" | 80" | 92" |
| Overall Depth | 44.5" | 44.5" | 44.5" |
| Weight | 452 lb | 460 lb | 489 lb |
