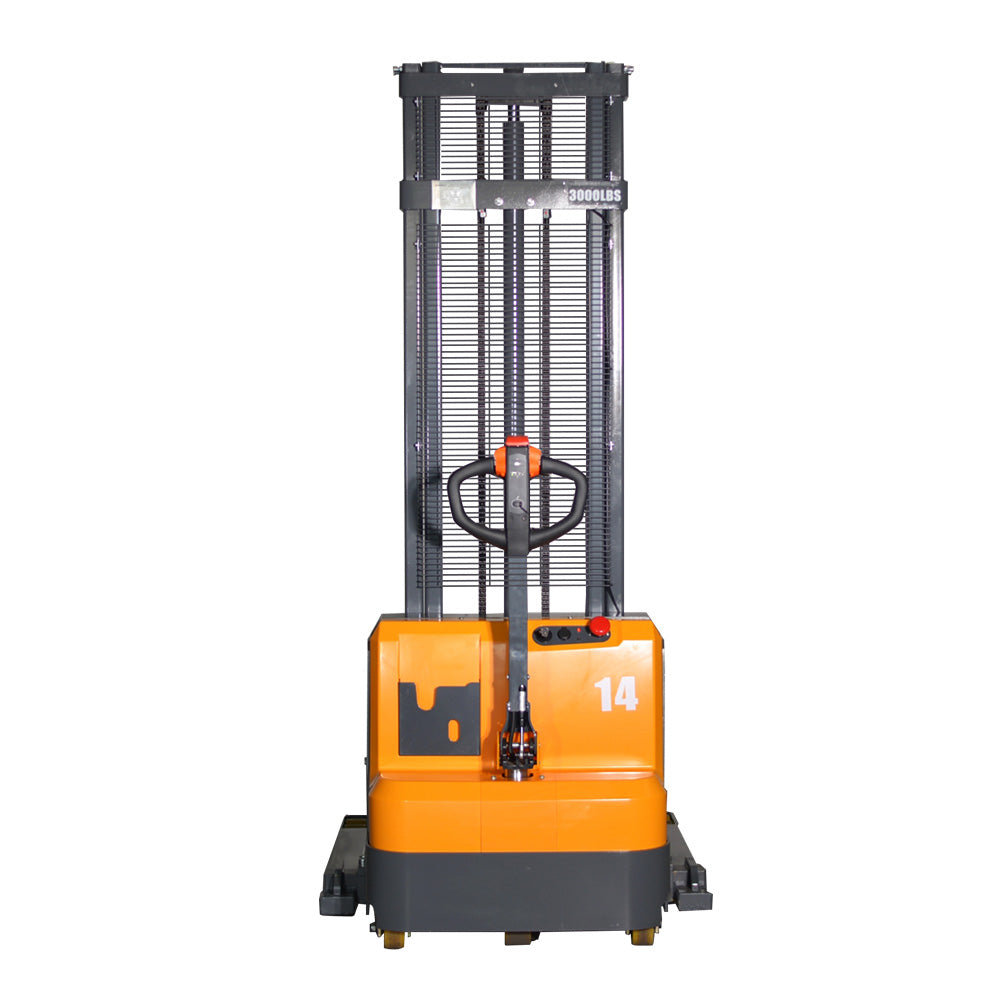

EB13C Full Electric Straddle Stacker - 2800 lbs Capacity, Adjustable Legs for Warehouse & Industrial Material Handling
Free shipping on all orders over $50
7-15 days international
20 people viewing this product right now!
30-day free returns
Secure checkout
92880034
Description
Optimize your warehouse operations with the Full Electric Straddle Stacker, Model EB13C, designed for high efficiency and versatility across various applications. This stacker combines the functionality of a forklift, reach truck, and walkie stacker, making it perfect for loading and unloading trucks, as well as general warehouse use.
Constructed from high-quality steel and robust components, the EB13C ensures reliability under any conditions. It features a load capacity of 2800 lbs and a maximum lift height of 118 or 138 inches, catering to a wide range of stacking requirements.
The stacker comes equipped with an ergonomic handle, Curtis Instrument Controller for precise operation, DC drive motor for enduring power, and polyurethane wheels for smooth maneuverability. The adjustable forks and legs enhance flexibility for various pallet sizes, making this stacker a versatile addition to your material handling equipment.
Key Specifications:
Model |
| EB13C-118 |
Load capacity | (lbs) | 2800 |
The max. lifting height | (in) | 118" |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 4 |
Fork Adjustment Width | (in) | 8.6-32.1 |
Lowered fork height | (in) | 2.56 |
Adjustable legs | (in) | 35.4-51.2 |
Turning radius | (in) | 56.1 |
Overall length | (in) | 73.4 |
Max Overall width | (in) | 61 |
Extended mast height | (in) | 127.6 |
Lowered mast height | (in) | 75.2 |
Battery voltage | (V/Ah) | 24V/85Ah |
Internal Charger | V/A | 24V/10A |
Lifting Motor | Kw | 2.2 kw |
Driving Motor |
| 0.75 kw |
Service Weight | (lbs) | 1345 |
Model |
| EB13C-138 |
Load capacity | (lbs) | 2800 |
The max. lifting height | (in) | 138" |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 4 |
Fork Adjustment Width | (in) | 8.6-32.1 |
Lowered fork height | (in) | 2.56 |
Adjustable legs | (in) | 35.4-51.2 |
Turning radius | (in) | 56.1 |
Overall length | (in) | 73.4 |
Max Overall width | (in) | 61 |
Extended mast height | (in) | 166.9 |
Lowered mast height | (in) | 75.2 |
Battery voltage | (V/Ah) | 24V/85Ah |
Internal Charger | V/A | 24V/10A |
Lifting Motor | Kw | 2.2 kw |
Driving Motor |
| 0.75 kw |
Service Weight | (lbs) | 1390 |
