EKKO EB12E Electric Straddle Stacker - 119-138 Inch Adjustable Height - Ideal for Warehouse & Industrial Material Handling
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
58377781
Description

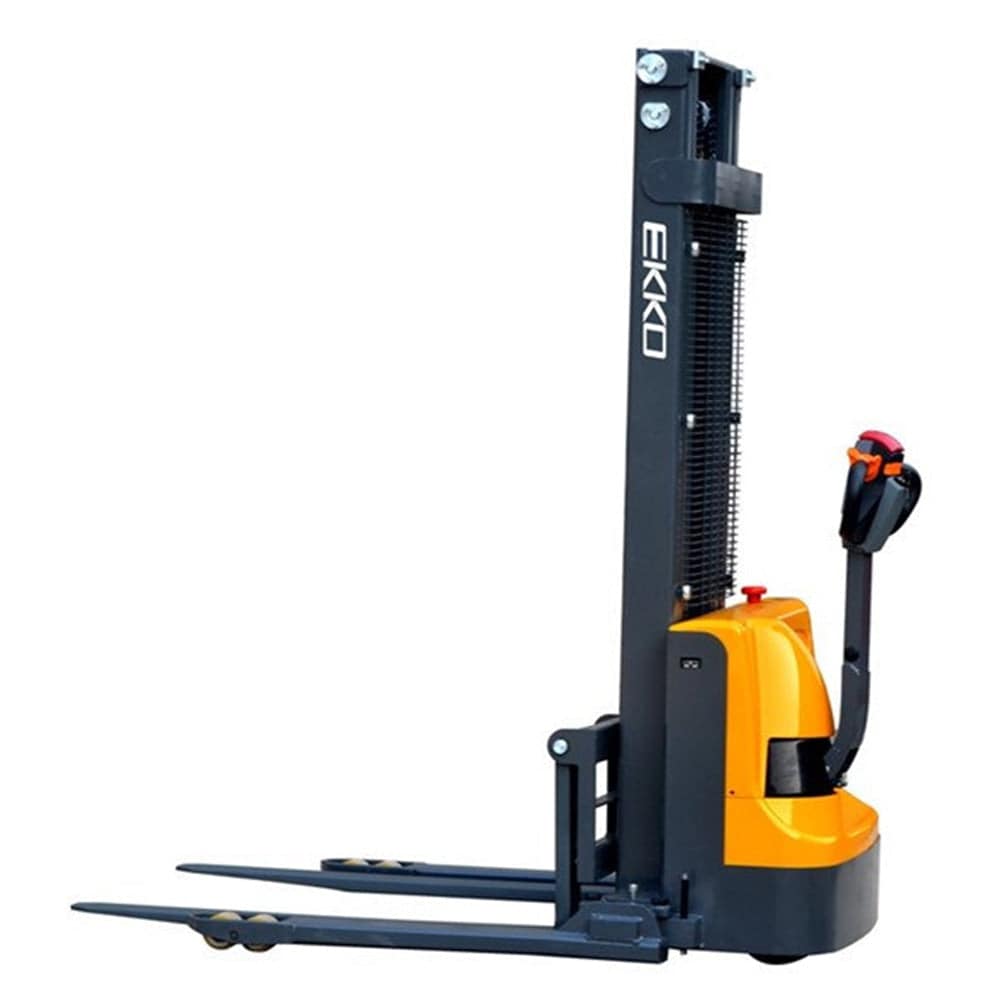

EKKO EB12E Electric Straddle Stacker - 119-138" Height
The EKKO EB12E Electric Straddle Stacker is a highly versatile material handling solution, integrating the functionalities of a forklift, reach truck, and walkie stacker. It is perfectly suited for tasks such as loading and unloading trucks, working in stock rooms, and operating on manufacturing floors and in warehouses. With a load capacity of 2,640 lbs and a maximum lifting height of 119 or 138 inches, this stacker is built from high-quality steel and components, ensuring durability and reliability in diverse working conditions.
Key Features:
- Versatile Load Capacity: Handles loads up to 2,640 lbs.
- High Lift Height: Reaches up to 119 or 138 inches for efficient stacking and retrieval.
- Adjustable Forks and Legs: Offers flexibility for different pallet sizes.
- Efficient Power System: Equipped with a Curtis controller, 24V drive motor, and lift motor.
- Built-In Battery and Charger: Includes 2-12V/100Ah batteries and an internal 24V/15A charger.
- Ergonomic Design: Features an ergonomic handle and controls for comfortable operation.
- Durable Construction: Steel is built with robotic welding for enhanced strength and stability.
- Warranty: Comes with a 3-year limited warranty.
Specifications:
- Model: EB12E
- Turning Radius: 52.6 inches
- Service Weight: 1,420 lbs
EKKO EB12E Electric Straddle Stacker: A powerful and efficient choice for businesses seeking a multifunctional and robust material handling tool.
- Load Capacity 2640 lbs.
- Raised Height 119.4" (9.95ft)
- Adjustable Forks 8.3-33.5"
- Adjustable Legs 45.7-59.1"
- Fork Length 45.3"
- Curtis Controller
- 24V Drive Motor
- 24V Lift Motor
- Internal Charger
- Battery 2*12V/100Ah Included
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- 3 Years Limited Warranty
Model |
| EB12E |
Load Capacity | (lbs) | 2640 |
The max. lifting height | (in) | 119 or 138 |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 4 |
Overall fork width | (in) | 8.3-33.5 |
Lowered fork height | (in) | 2.35 |
Fixed leg length | (in) | 36.5 |
Adjustable legs | (in) | 45.5-59.1 |
Turning radius | (in) | 52.6 |
Overall length | (in) | 70 |
Max Overall width | (in) | 61 |
Extended mast height | (in) | 135 |
Lowered mast height | (in) | 82 |
Battery voltage (dimensions) | (in) | 2-12V/100AH(10/6.6/8.5) |
Internal charger | V/A | 24V/15A |
Lifting Motor | V/Kw | 2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
Driving Motor |
| 0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
Service Weight | (lbs) | 1420 |
