High Capacity Lithium Electric Straddle Stacker EB18C LI - Efficient Warehouse Pallet Stacking Equipment for Logistics & Industrial Use
Free shipping on all orders over $50
7-15 days international
26 people viewing this product right now!
30-day free returns
Secure checkout
90451702
Description

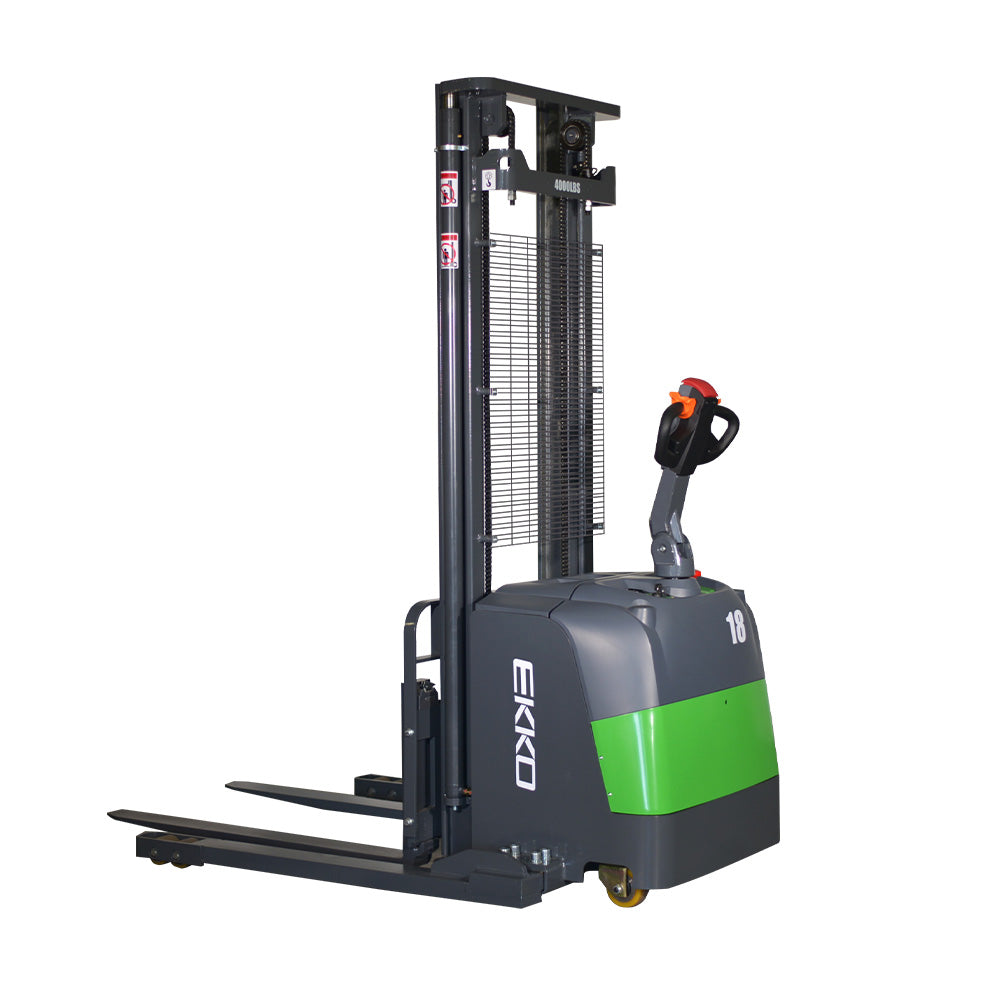

Discover the powerful performance of the EKKO EB18C-LI Electric Straddle Stacker, an ideal blend of a forklift, reach truck, and walkie stacker, engineered for optimal functionality in diverse industrial environments.
Constructed from premium steel and equipped with high-quality components, this straddle stacker excels in various operational conditions, ensuring reliability and durability. The stacker offers a significant load capacity of 4000 lbs and a lift height of 118/138/145 inches, suited for high-demand applications.
Featuring a Curtis controller, 24V AC drive motor, and a 24V lift motor, powered by a 24V/90Ah lithium battery, this stacker provides efficient power management and extended operation times. Its ergonomic handle, adjustable forks and legs, and polyurethane wheels make it a versatile choice for warehouses and manufacturing floors.
Key Specifications:
Model |
| EB18C-118 |
Load capacity | (lb) | 4000 |
The max. lifting height | (in) | 118 |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 3.94 |
Overall fork width | (in) | 8.66 |
Lowered fork height | (in) | 2.56 |
overall length | (in) | 76.18 |
Adjustable legs | (in) | 39.76-55.55 |
Turning radius | (in) | 62.83 |
Max width | (in) | 61 |
Extended mast height | (in) | 147.64 |
Lowered mast height | (in) | 79.33 |
Battery voltage | (V/Ah) | 24/90 Lithium |
The charger | (V/A) | 24V/30A |
Lifting Motor | (W) | 3000 Watt |
Driving Motor | (W) | 750 Watt |
Service Weight | (lb) | 2270 |
Model |
| EB18C-138 |
Load capacity | (lb) | 4000 |
The max. lifting height | (in) | 138 |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 3.94 |
Overall fork width | (in) | 8.66-82.09 |
Lowered fork height | (in) | 2.56 |
overall length | (in) | 76.18 |
Adjustable legs | (in) | 39.76-55.55 |
Turning radius | (in) | 62.83 |
Max width | (in) | 61 |
Extended mast height | (in) | 166.93 |
Lowered mast height | (in) | 89.17 |
Battery voltage | (V/Ah) | 24/90 Lithium |
The charger | (V/A) | 24V/30A |
Lifting Motor | (W) | 3000 Watt |
Driving Motor | (W) | 750 Watt |
Service Weight | (lb) | 2360 |
Model |
| EB18C-145 |
Load capacity | (lb) | 4000 |
The max. lifting height | (in) | 145 |
Load center distance | (in) | 24 |
Fork length | (in) | 45.3 |
Single fork width | (in) | 3.94 |
Overall fork width | (in) | 8.66-82.09 |
Lowered fork height | (in) | 2.56 |
overall length | (in) | 76.18 |
Adjustable legs | (in) | 39.76-55.55 |
Turning radius | (in) | 62.83 |
Max width | (in) | 61 |
Extended mast height | (in) | 174.8 |
Lowered mast height | (in) | 93.19 |
Battery voltage | (V/Ah) | 24/90 Lithium |
The charger | (V/A) | 24V/30A |
Lifting Motor | (W) | 3000 Watt |
Driving Motor | (W) | 750 Watt |
Service Weight | (lb) | 2380 |
