Description

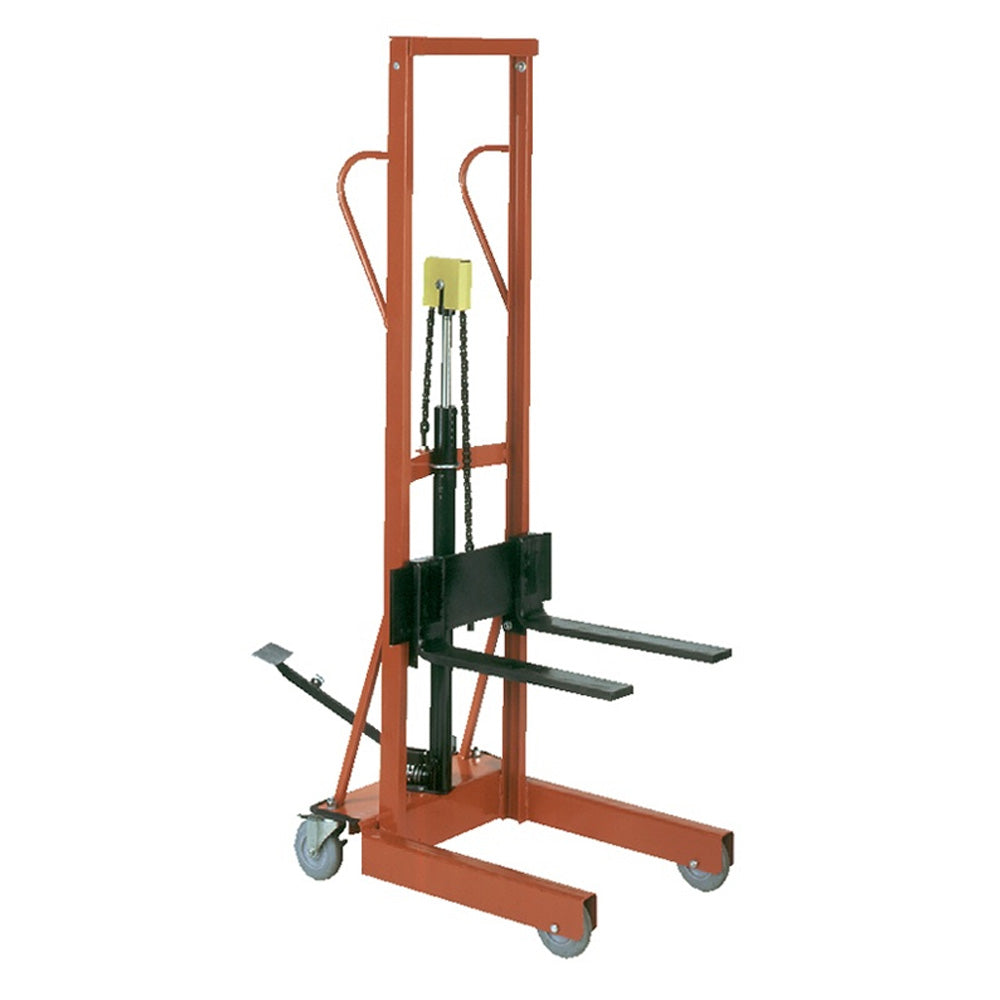

Hydraulic Lite-Lift with Adjustable Forks and Foot Pump, 500 lb Capacity
The Hydraulic Lite-Lift, available in models LLHP and LLHF, is a high-quality material handling solution featuring a Wesco manufactured hydraulic Pedalift Jack with over 35 years of proven quality. This lift is equipped with a foot-operated hydraulic pump and a release foot pedal for controlled lowering. It includes adjustable forks, casters with wheel locks, and is ideal for a variety of lifting applications.
The Hydraulic Lite-Lift comes with a 1-year warranty and offers a maximum lift height of 54". The platform and fork dimensions vary between models, providing versatility to meet different lifting needs. The LLHP model features a small skid/engine lifter, while both models ensure stability and ease of use with their robust design and locking casters.
Specifications
| Specification | Part Number: 260150 | Part Number: 260151 |
|---|---|---|
| Model | LLHP | LLHF |
| Capacity | 500 lb | 500 lb |
| Lift Height | 54" | 54" |
| Platform Width | 20" | N/A |
| Platform Length | 20" | N/A |
| Width Forks | N/A | 3" |
| Length Forks | N/A | 19" |
| Load Center | 15" | 10" |
| Overall Width | 20" | 20" |
| Overall Height | 70.5" | 70.5" |
| Overall Depth | 30" | 30" |
| Weight | 139 lb | 157 lb |
| Caster | (4) 5" | (4) 5" |
| Lowered Height | 5.75" | 4.25" |
| Front Leg Span Outside Diameter | 20" | 20" |
| Front Leg Span Inside Diameter | 15.25" | 15.25" |
| Thickness Forks | N/A | 0.75" |
