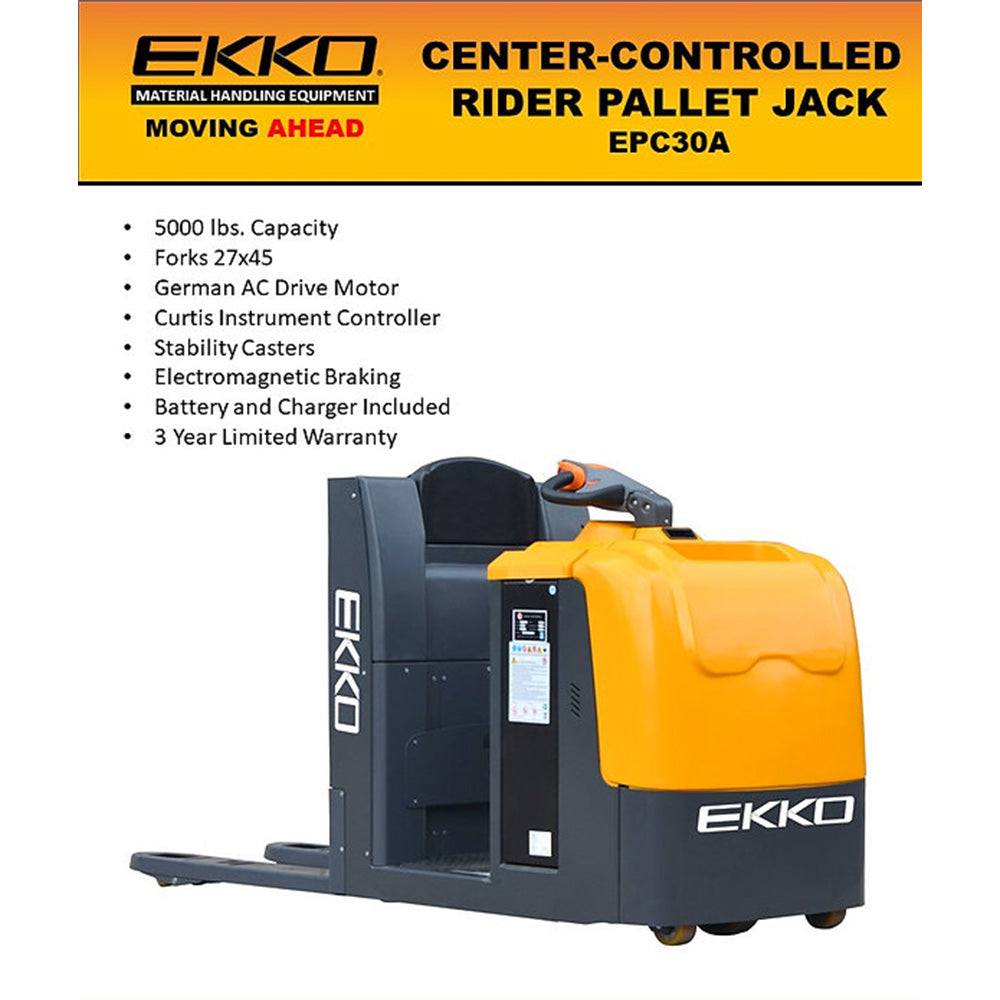

EPC30A Center-Controlled Rider Pallet Jack - 5000 lbs Capacity for Warehouses, Factories & Heavy-Duty Material Handling
Free shipping on all orders over $50
7-15 days international
18 people viewing this product right now!
30-day free returns
Secure checkout
65564985
Description
The EKKO EPC30A Center-Controlled Rider Pallet Jack merges the convenience of a traditional pallet jack with the high efficiency of full powerlifting and driving capabilities, perfect for extensive use in warehousing, manufacturing floors, and loading docks.
Constructed from high-grade steel and robust components, the EPC30A ensures reliability and durability in challenging environments, thanks to its superior engineering and meticulous construction. The included Curtis Controller and German AC Drive Motor offer precise control and sustainable performance, making it a preferred choice for heavy-duty operations.
Key Specifications:
| Model | EPC30A | |
| Power unit | Electric | |
| Operation | Stand on | |
| Rated loading capacity | Q (LBS) | 5000 |
| Load centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 35.83 |
| Wheel base | y (Inch) | 81.89 |
| Wheels type | PU | |
| Driving wheel size | w(Inch) | 9.84-2.95 |
| Bearing wheel size | w(Inch) | 3.15-3.35 |
| Balance wheels | w(Inch) | 4.53-2.17 |
| Wheels, number front/rear (x = driven) | 1,2/2 | |
| Track width | b10 (Inch) | 21.26 |
| Track width | b11 (Inch) | 20.28 |
| Lifting height | h3 (Inch) | 7.88" |
| Overall height | h14 (Inch) | 42.91 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall length | l1 (Inch) | 99.09 |
| Body Length | l2 (Inch) | 58.82 |
| Overall width | b1/ b2 (Inch) | 31.81 |
| Fork Size | s/e/l (Inch) | 1.97/6.69/45.3 |
| Fork Width | b5 (Inch) | 26.97 |
| Min.Ground clearance | m2 (Inch) | 0.98 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 107.48 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 109.45 |
| Turing Radius | Wa (Inch) | 89.68 |
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed, with/without load | (mm/s) | 23/24 |
| Lowering speed, with/without load | (mm/s) | 30/20 |
| Maximum climbing ability, with/without load | (%) | 3/6 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 1.5 |
| Lift Motor | (kW) | 0.8 |
| Battery1/4Œaccording to DIN 43531/35/36 A,B,C,no | no | |
| Battery voltage/rate capacity | (V/Ah) | 24/360 |
| Battery Weight(±5%) | (LBS) | 680 |
| Steering type | EPS | |
| Type of drive control | AC | |
| Noise level | (dB(A)) | 75 |
| Service weight with battery | LBS | 2400 |
