Electric Stacker with Counterbalance - 1,200 to 3,300 lbs Capacity for Warehouse, Factory & Logistics Operations

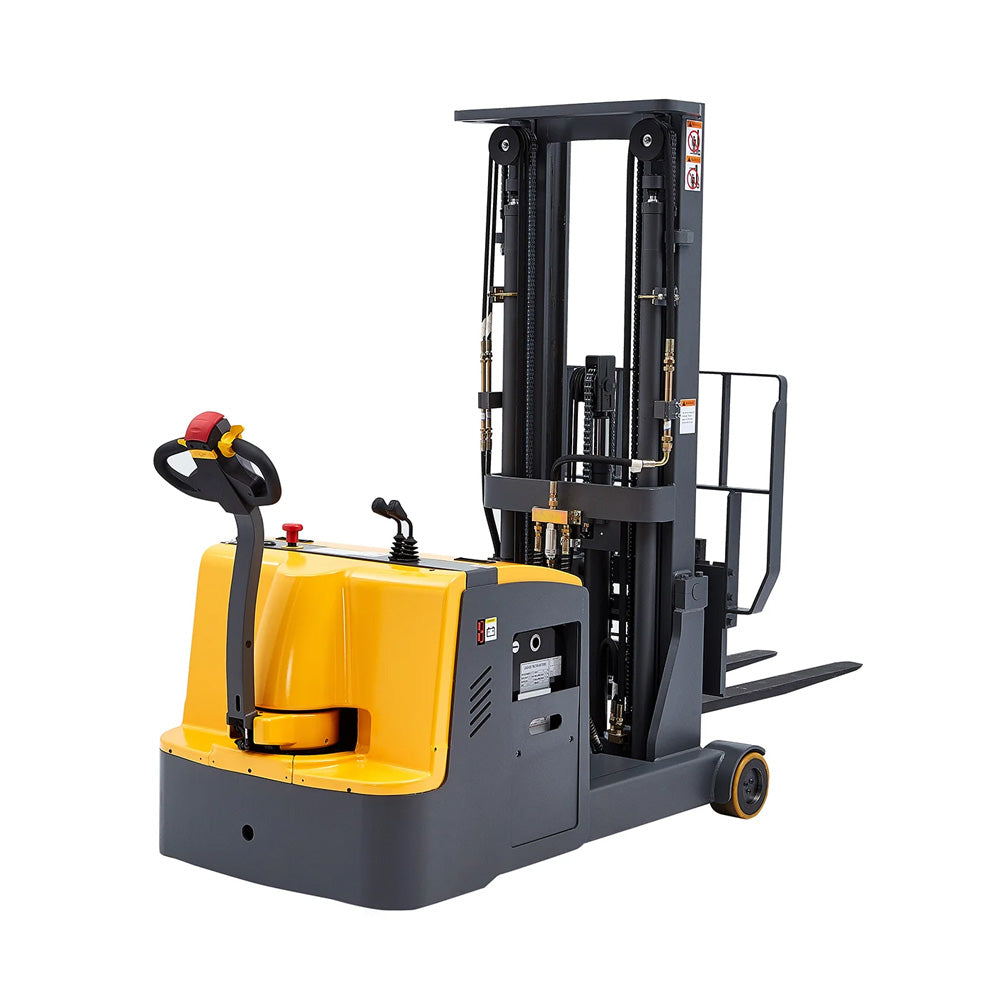

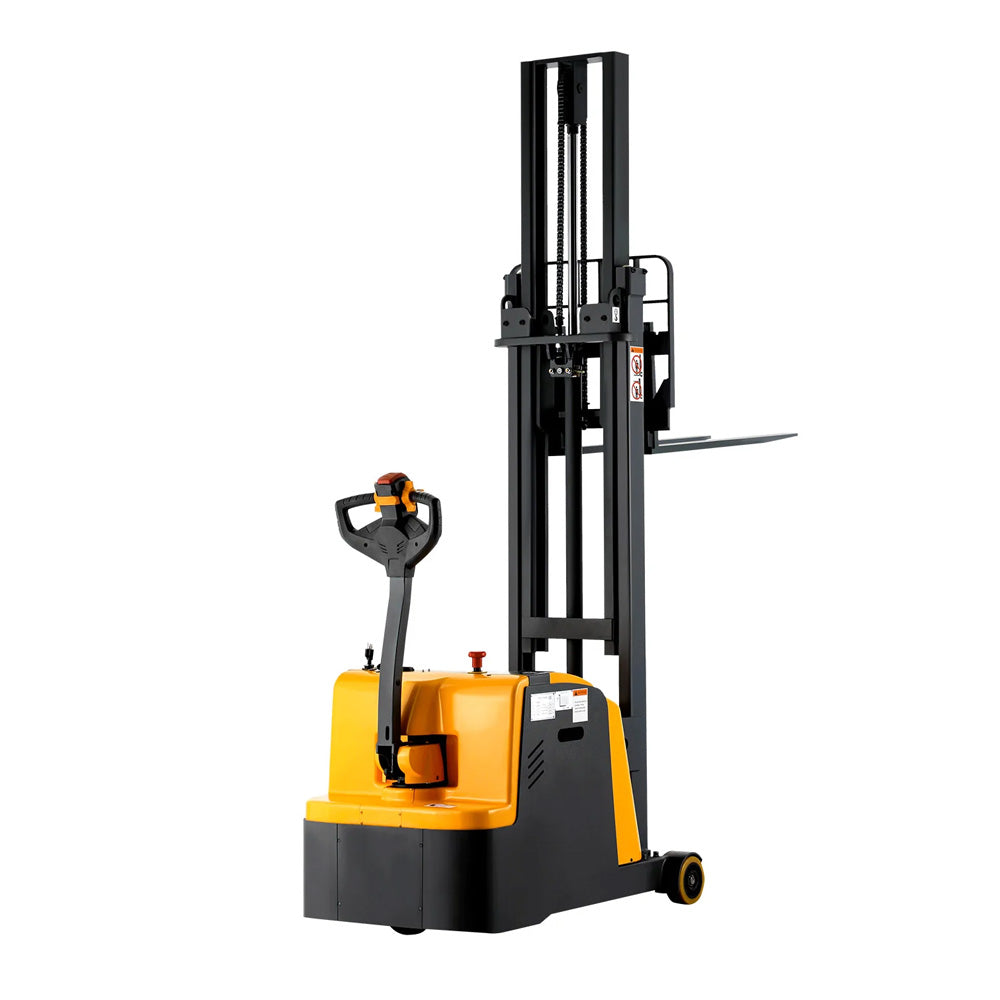

Counterbalanced Electric Stacker, 1,200-3,300 lbs Capacity, 98"-177" Lifting Height

The Counterbalanced Electric Stacker is perfect for approaching racks and trucks, as there are no straddle legs to obstruct a close approach. Equipped with a 650-watt drive motor and a 2,200-watt lift motor, this stacker is ideal for narrow aisles with its upright walking function. The innovative upper horizontal structure design allows for quick wheel replacement in just 2 minutes.

Featuring two 12-volt, 125 Ah rechargeable GEL batteries and a built-in 110V charger, this stacker offers 4-5 hours of service per charge. The multi-function display shows working hours, battery status, and low-voltage protection, ensuring reliable performance and easy operation.

Dimensions

• Overall Length: 92.76"
• Overall Width: 33.3"
• Recommended Aisle Width: 113.38" (9.45 feet)
• Turning Radius: 52.52"
• Load Center: 15.7"
• Gradeability (laden/unladen): 5%/10%

Mast

• Mast Height Lowered: 80.8"
• Mast Lifting Height: 118"
• Mast Height Raised: 143.3"
• Mast Tilt (forward/backward): 1°/3°

Forks

• Thickness: 1"
• Width: 3.9"
• Length: 33.3"
• Fork Width Range: 8.6" - 25.4"

Features

• Long handle structure for light and flexible steering
• Thoughtful mast design for wide viewing angles
• Normal ambient temperature range: -13°F to +104°F

Speed

• Lifting Speed (laden/unladen): 0.11/0.15 m/s
• Lowering Speed (laden/unladen): 0.85/0.9 m/s

Specifications

• Not explosion proof
• Designed for use on flat ground, avoiding uneven grounds with potholes or large ramps
• Fully charge battery before use to avoid damaging cells
• Charger plugs into standard 110V-120V outlets
• Charge the stacker once a month even if not in use

Models and Specifications
